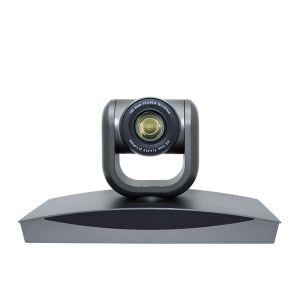

All-in-one Video Conference Endpoint System with 1080p PTZ Camera and 10X Optical Zoom Android 5.1 for Meeting ,Teaching etc
Model :FT-HD1
Name: Integrated audio and video intelligent terminal platform
Android parameters:
Operating system :Android 5.1
Processor (CPU): 4-core ARM® Cortex-A17, clocked at 1.6GHz
Graphics Processing Unit (GPU): ARM Mali-T764 3D GPU
Support OpenGL ES1.1/2.0, OpenVG1.1
Resolution: 1920*1080P
Operation/Storage: DDR4 2GB/16GB
Video camera
Sensor: 1/2.8 inch CMOS, effective pixels: 2.07 million
Lens: Optical 10X, f=4.7mm ~ 47mm, F1.5 ~ F2.5
Minimum illumination: Color: 0.1Lux
Shutter: 1/60-1/10000S
White balance: auto/indoor/outdoor
Backlight compensation: support
Signal to noise ratio: ≥55dB
Horizontal field of view: 58°
Horizontal rotation range: ±175°
Vertical rotation range: 90° (upward), 45° (downward)
Horizontal rotation speed range: 1°~60°/s
Vertical rotation speed range: 1°~60°/s
Vertical flip: support
interface
Audio input interface: 1 x 3.5mm microphone input (optional)
Audio output interface: 1 x 3.5mm linear output (optional)
Video input interface: 1 x built-in camera input
1 X USB*2
Video output interface: 1 x HDMI 2.0 (Type-A ), support 4K@60 frame output
USB interface:3x USB2.0
Network interface: 1 x RJ45: 1 x 10/100/1000 Mbps 1 x wireless: 2.4G/5GWiFi dual-band WIFI 1 x Bluetooth 4.0
SD card port : 1 x TF/Micro SD card port, maximum support 128G TF card
Power interface: 1 x 12V/2A DC power interface
General characteristics
Terminal size: 284mm*147mm*161mm
Working voltage: AC 100V ~ 240V, DC 12V
Working frequency: 50Hz/60Hz
Maximum power consumption: 24W
Temperature: 0°C ~ 40°C (working state), -40°C ~ 70°C (non-working state)
Relative humidity: 10% ~ 80% (working state), 0% ~ 95% (non-working state)
Surrounding noise: less than 46dBA SPL
Minimum illumination: 5lux
Recommended illuminance: greater than 300lux
Product Features:
Integrated platform integration design: support one HDMI output; support LAN interface; support 3 USB2.0 interfaces; support 2.4G/5G WiFi; support Bluetooth connection, which realizes the integration of camera and conference terminal platform;
RK3288 processor: Super quad-core Cortex-A17, frequency 1.6GHz CPU
Image processing: support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11, embedded high-performance 2D/3D acceleration hardware, support 4K, H.265 hard decoding 10bits color depth, HDMI2.0, support 1080P Multi-format video decoding 1080P video encoding, supporting H.264, VP8 and MVC image enhancement processing
Sophisticated design: adopts an integrated compact design with a built-in camera. Small size, rich interface, convenient connection, simple installation and maintenance;
Wireless WiFi: Support standard wireless protocols, simple and efficient device deployment;
Local storage: support SD card storage, U disk storage, storage space up to 64G;
HD lens: 10x optical zoom, 58° horizontal angle of view, no distortion lens;
Low noise and high signal-to-noise ratio: Low-noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video. Adopt advanced 2D and 3D noise reduction technology to further reduce the noise while ensuring image clarity;
Multiple video compression standards: support MJPEGH/H.264 video compression;
Low-power sleep function: support low-power sleep/wake up;
There are many applications: conferences, education, medical care, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, justice, public security, military and other system applications;
|
|
All-in-one Video Conference Endpoint System with 1080p PTZ Camera and 10X Optical Zoom Android 5.1 for Meeting ,Teaching Images
|
